Cross-platform Product Design · Mobile App + TV Experience跨端产品设计 · 手机 App + TV 端体验

TVChannels

Turning live viewing into a cross-device path to VOD and subscription. 用直播观看,连接点播内容和订阅转化。
Role角色 Led end-to-end interaction and high-fidelity design across TV and mobile, shaped key product hypotheses with PMs, co-wrote PRDs, handed off to development, and joined post-launch review.主导 TV 与手机端的端到端交互和高保真设计,与 PM 共创关键产品假设、共写 PRD,完成开发交付并参与上线后复盘。
Product产品 A two-screen viewing system: TV for program density and lean-back playback; mobile expanded from favorites / remote control into richer content discovery, account, and conversion tasks.一个双屏观看系统:TV 负责节目密度和客厅观看;手机端从收藏/遥控器工具扩展为更丰富的内容发现、账号和转化任务。
Market市场 Released across multiple overseas regions, including North America and Europe.已在北美、欧洲等多个海外区域上线。
01 — Who & the Problem01 — 用户与问题

Decisions happen on the phone; viewing lands on the living-room TV.决策在手机上发生,观看落在客厅大屏。

A multi-device household: the family watches live and on-demand (VOD) on the TV, while members keep watching on their phones during commutes or before bed. With kids at home, identity and content boundaries matter. Search, comparison, subscription, and payment tend to happen on mobile, while the final viewing lands on the shared screen.一个多设备家庭:一家人在客厅用 TV 看直播和点播(VOD),成员各自在通勤、睡前用手机接着看;家里有孩子,需要清晰的身份与内容边界。搜索、比较、订阅、支付多发生在手机上,而最终观看落在客厅共享大屏。

That gap turned continuation, conversion, and household control into cross-device problems the product had to solve as one system.正是这个落差,让连续观看、付费转化和家庭管理都成了跨端问题——产品要把它们当作一个系统来解决。

02 — Strategy02 — 设计策略

Three strategies set the targets for the work.三条策略,定下设计要达成的目标。

All three serve one goal — make a two-screen product feel like one continuous viewing experience.三条策略服务同一个目标——让双屏产品用起来像一段连续的观看。

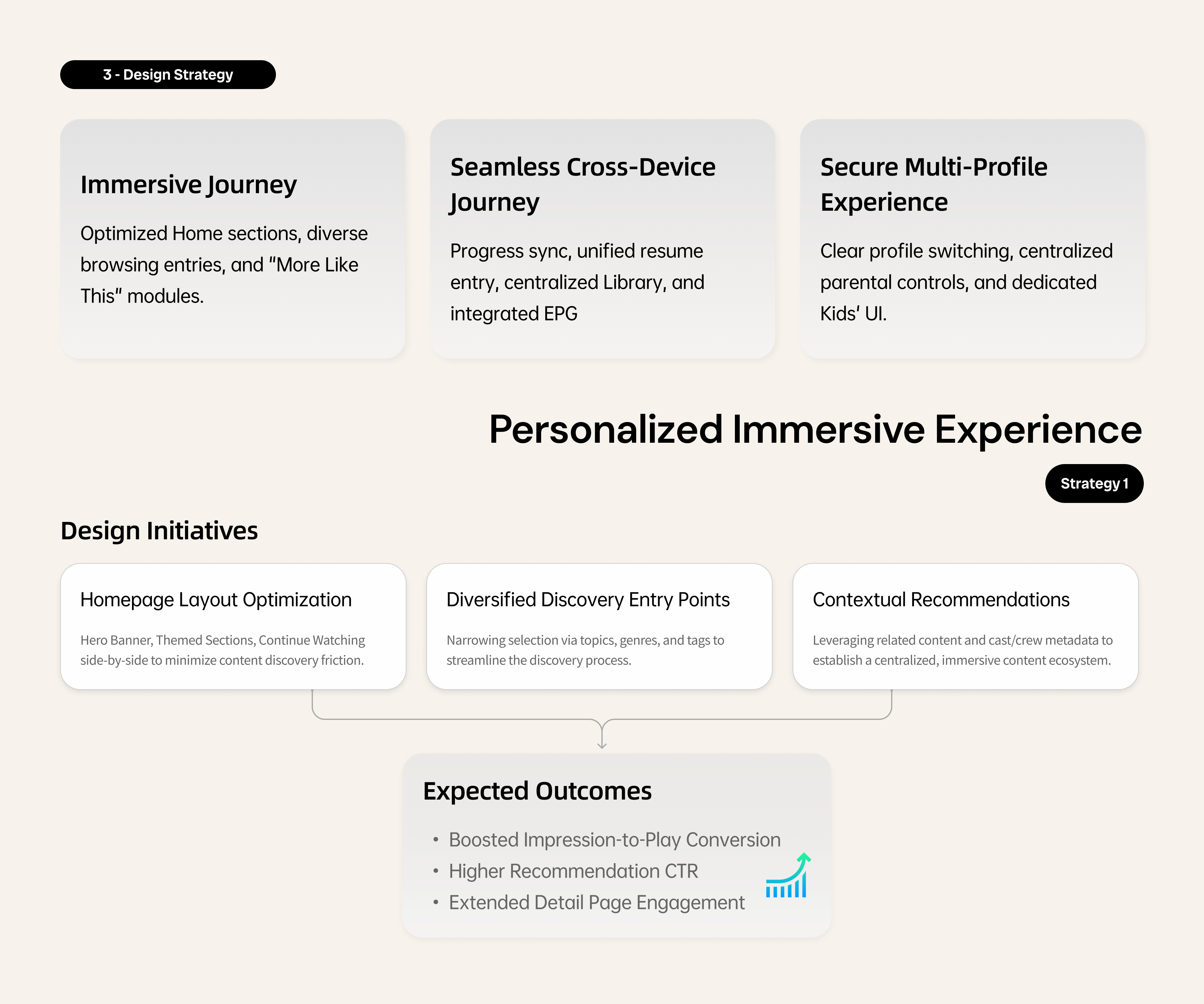

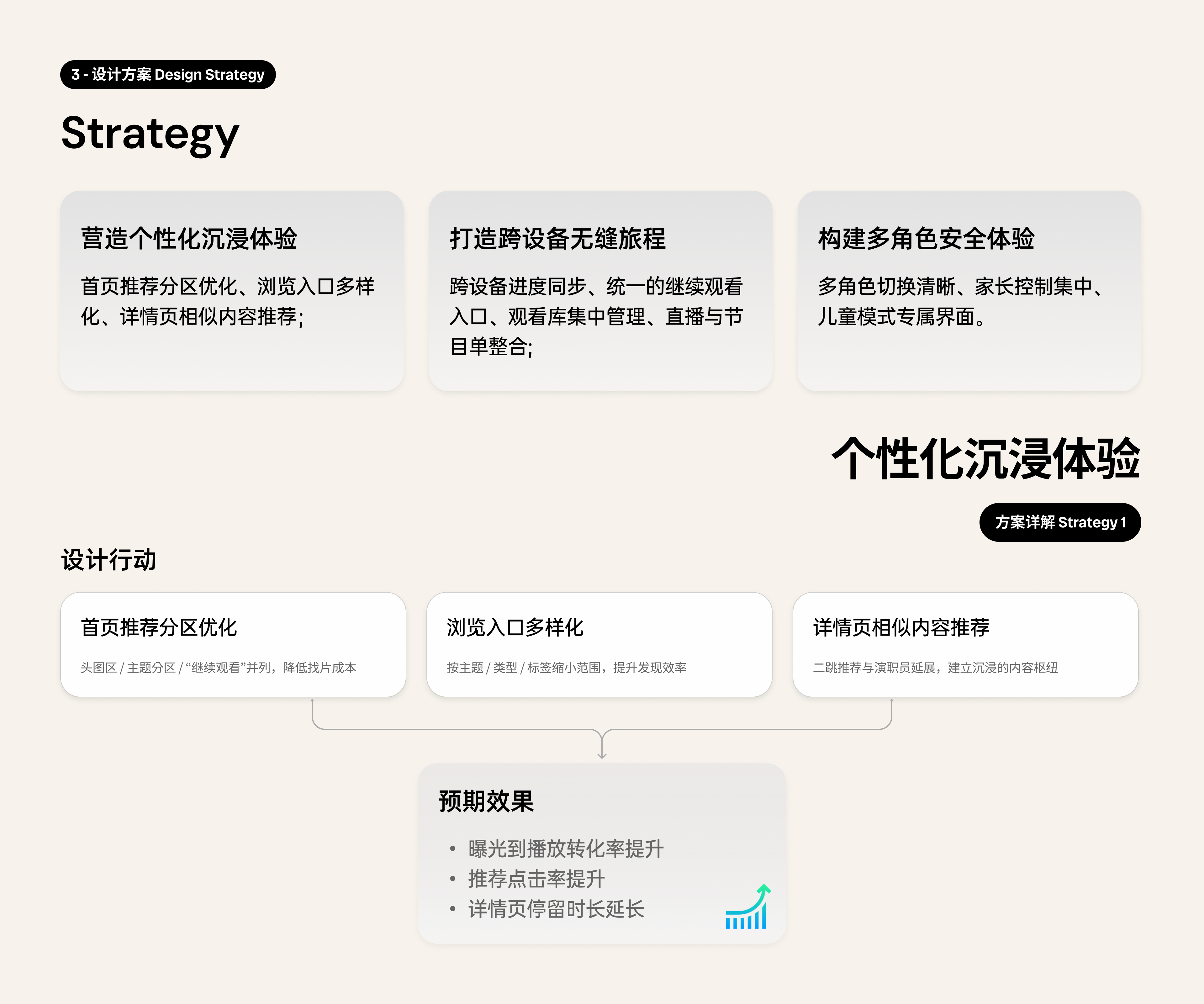

Three design strategies with initiatives and target outcomes 三条设计策略及其设计动作与目标
03 — The Viewing Journey03 — 观看旅程

One journey across two screens.一条贯穿两块屏的观看旅程。

Living room · Live客厅 · 直播

Watch live, lean back.客厅看直播,lean-back。

The shared TV owns immersive, lean-back viewing.共享大屏负责沉浸、lean-back 观看。

Mobile · Decide & Pay手机 · 决策与支付

Search, compare, subscribe, pay.搜索、比较、订阅、支付。

The phone carries input-heavy and private tasks.手机承接输入重、涉隐私的任务。

Cross-device · Continue跨端 · 继续

Resume on any screen.任意屏接着看。

Progress and entitlement follow the user across ends.进度与权益跨端跟随用户。

The product treats this path as one system—progress, entitlement, and entry points connect across both ends. Each screen that follows is a node on this journey.产品把这条链路当作一个系统来设计——进度、权益、入口在两端打通。后面的每一屏,都是这条旅程上的一个节点。

04 — Live & Program Guide04 — 直播与节目单

Live viewing is built around interest and habit.直播体验围绕兴趣与习惯来组织。

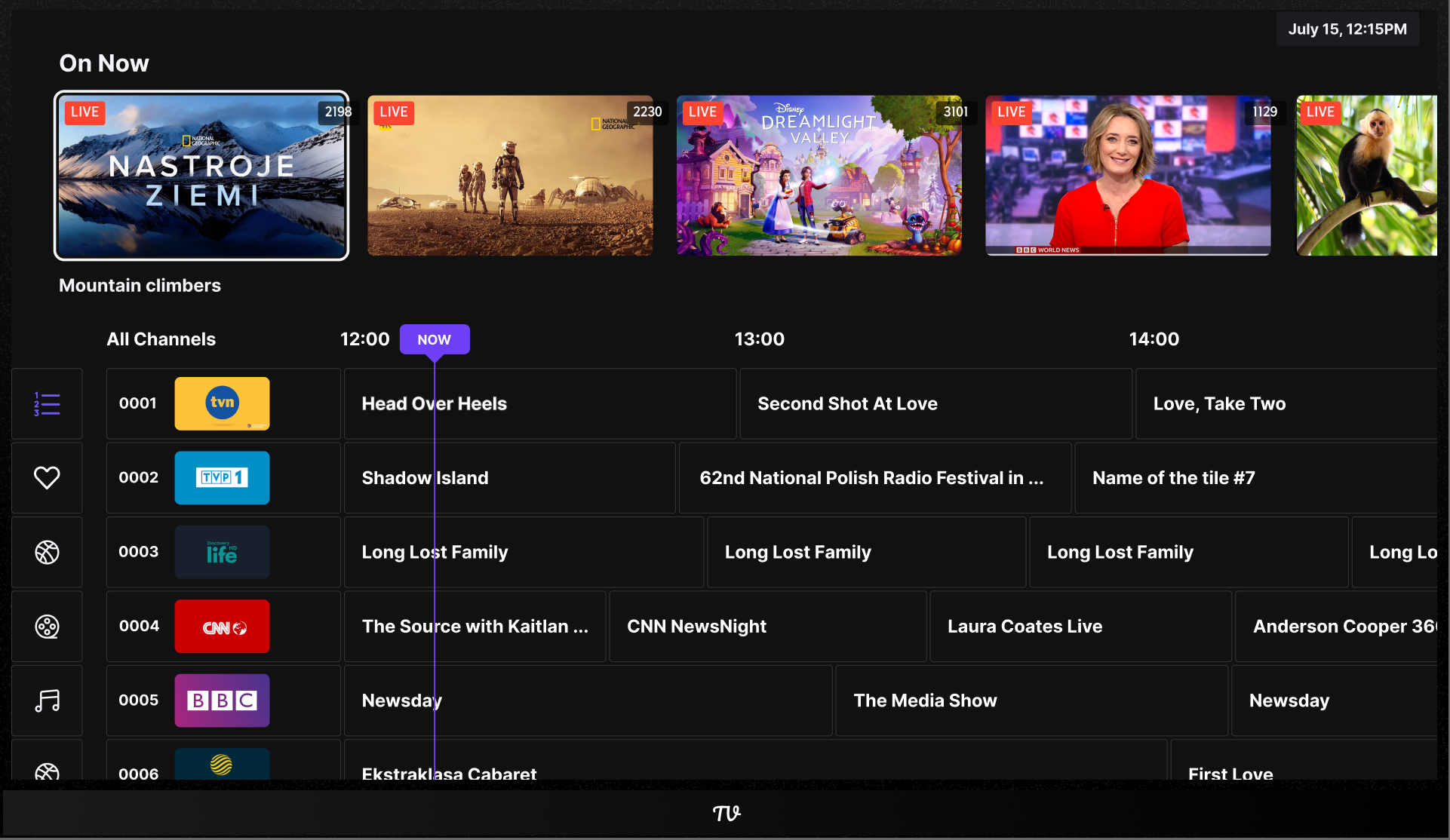

TVChannels TV program guide
TV program guideTV 节目单
Channel recommendation频道推荐Frequently-watched channels are pinned up front — channel-surfers re-enter by habit, not search.常看频道前置——刷频道的人靠习惯回访,不靠搜索。
Program guide节目单A horizontal now/next timeline lets a lean-back viewer scan the schedule without typing.横向 now/next 时间轴,让 lean-back 观看者不打字就能扫节目。
Reminders预约Set a reminder on the phone, it fires on the TV — because deciding and watching happen on different screens.手机上设提醒、TV 上触发——因为决策和观看本就在不同屏。
05 — Decision · Live → VOD05 — 决策 · 直播延伸点播

Turn live attention into the bridge to on-demand.把直播注意力,变成通往点播的桥。

Problem问题

Live viewing usually ends in drop-off, yet the project's core goal was to channel live traffic toward VOD and subscription.直播看完往往就流失;而项目的核心目标,是把直播流量引向点播与订阅。

Analysis分析

While a user is watching or switching live channels, attention is highest and friction lowest — the best moment to bridge into VOD. The hard part is where and how to surface it without interrupting the live stream itself.用户正在观看或切换直播时,注意力最高、阻力最低,是承接点播的最佳时机;难点在于"在哪露出、怎么露出",才不打断直播本身。

Decision决策

On the live player, "similar content" works as a low-friction bridge; on the on-demand detail page, content context, related recommendations, and trial / rent / buy sit in one place, so users can judge value before entering the commercial path.在直播播放页提供"相似内容"作为低阻力桥接;进入点播详情页时,把内容语境、相似推荐与试用 / 租 / 买放在一处,让用户在进入商业路径前先判断价值。

Result结果

The path from live to VOD was connected; after launch, VOD watch time trended upward.打通了从直播到点播的承接路径,上线后点播观看时长呈上升趋势。

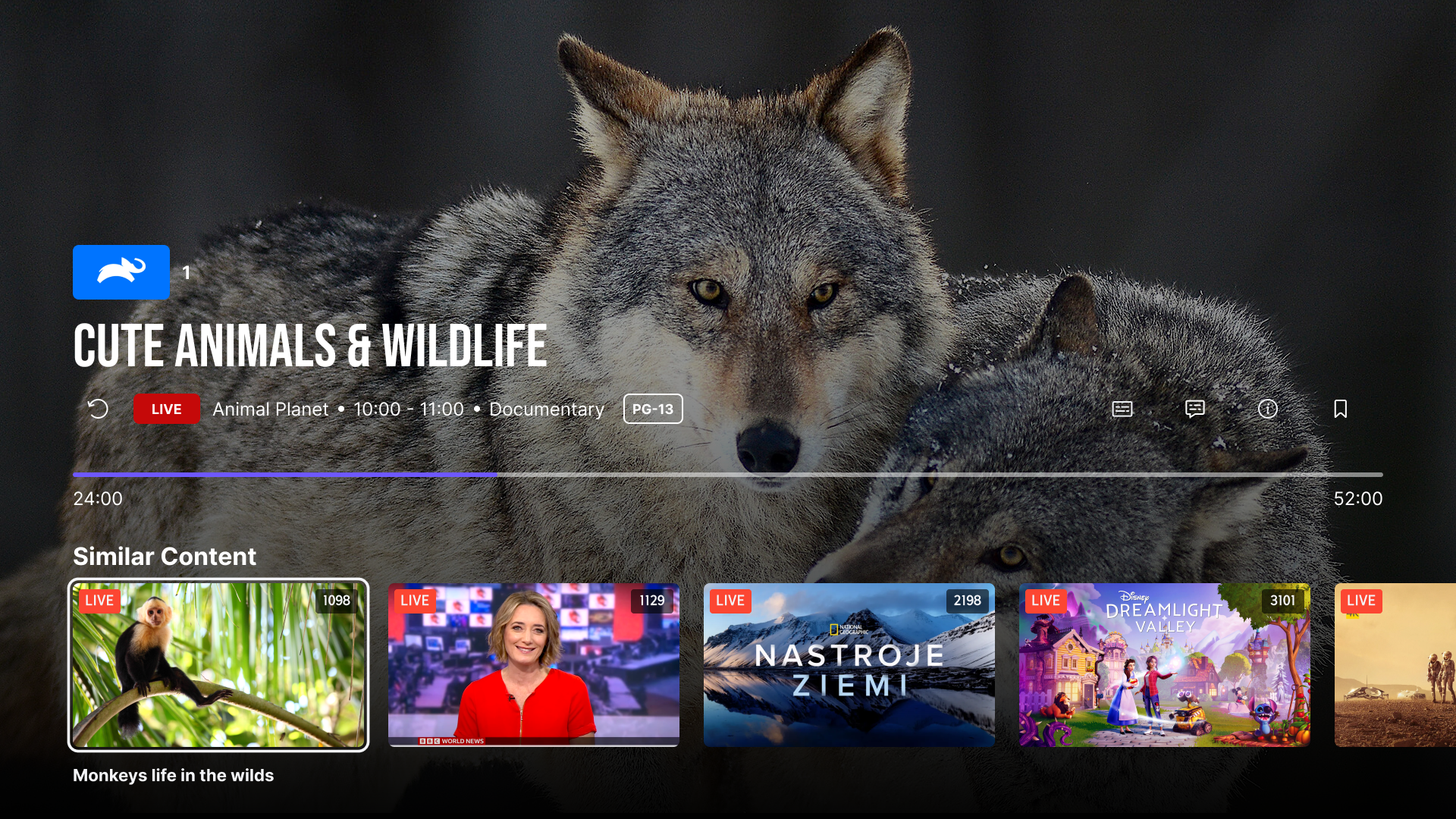

Live player surfacing similar content
Live player直播播放页

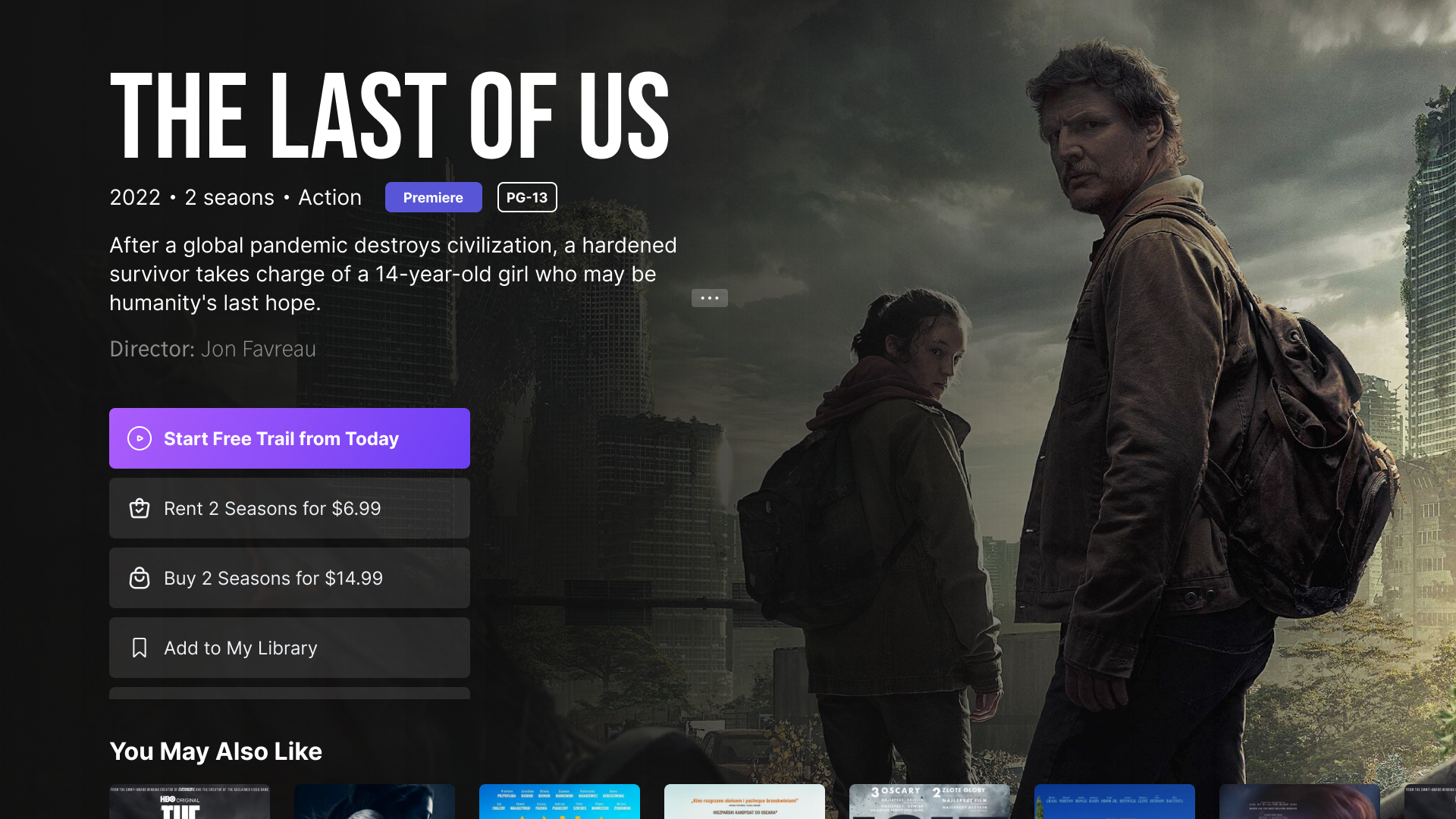

On-demand detail page
On-demand detail点播详情
06 — Subscription06 — 订阅

A subscription users can compare and commit to.让订阅清晰可比,用户能放心决定。

The subscription path runs across both screens: see the offer, choose a plan, and the entitlement is clear right after.订阅路径贯穿两块屏:先看到入口,再选套餐,订阅后权益一目了然。

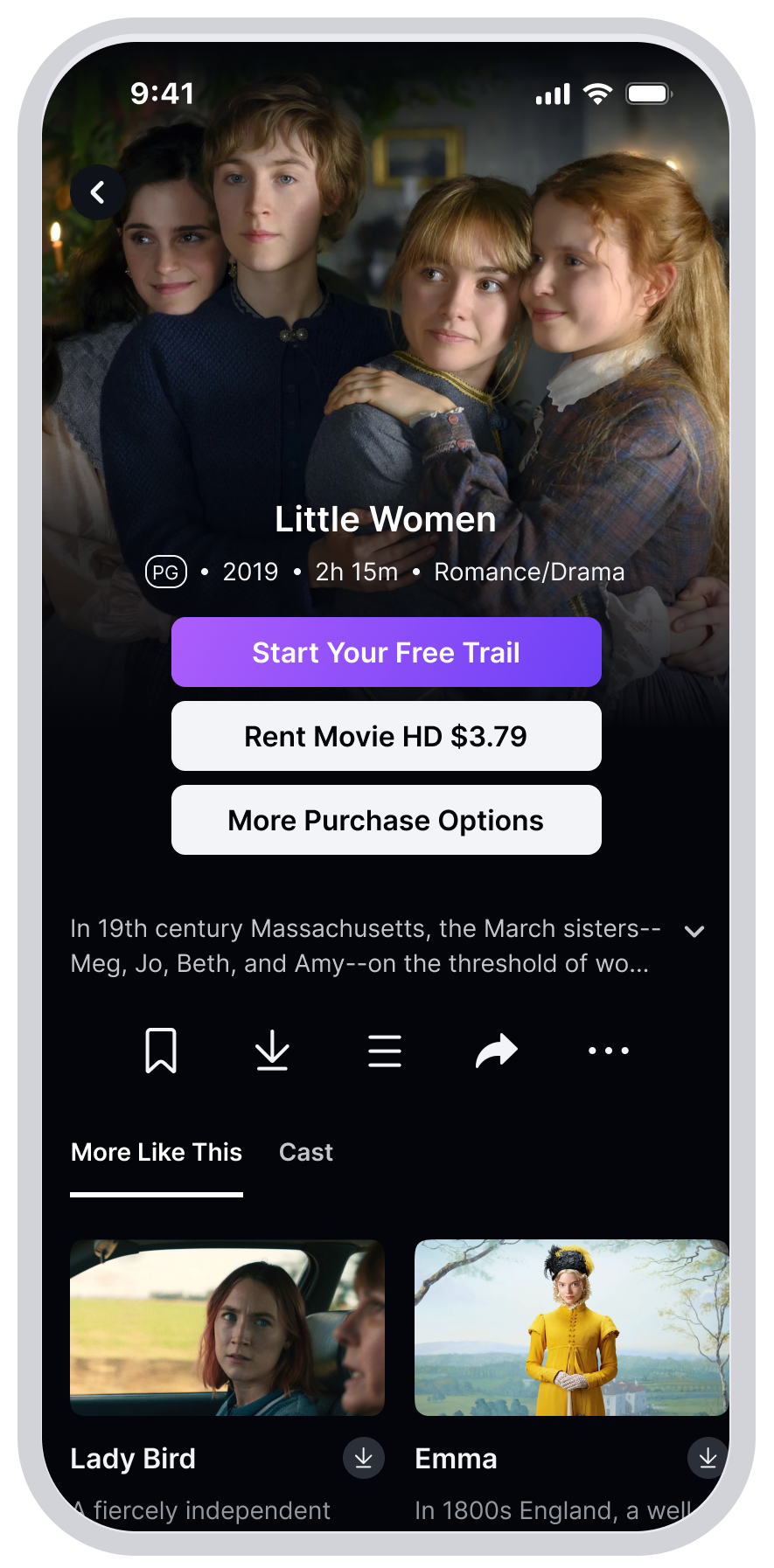

Title with free trial, rent, and buy
Subscription offer订阅入口 Trial, rent, and buy read as one clear choice set.试用 / 租 / 买,读成一组清晰的选择。

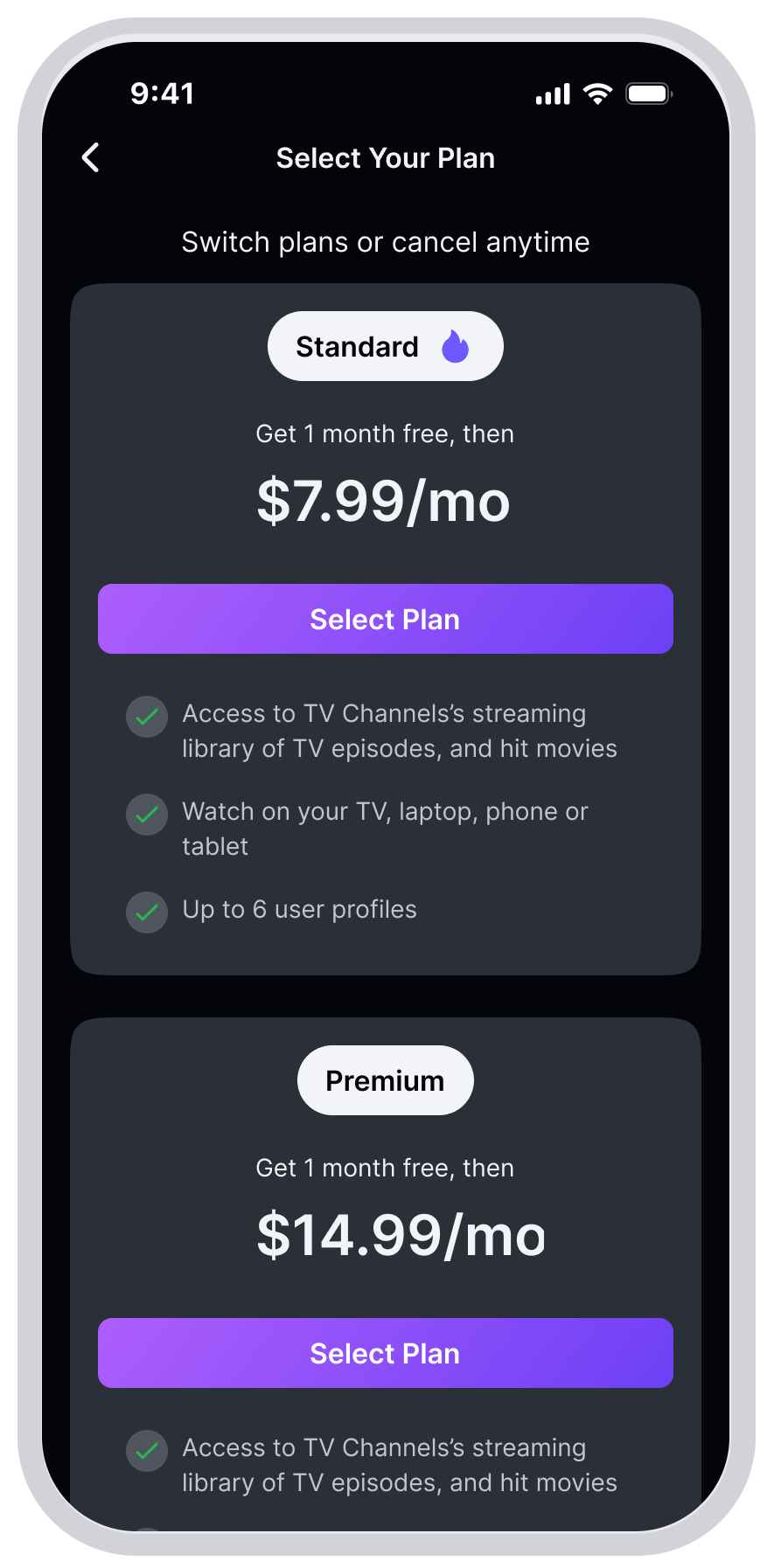

Plan selection
Plan selection套餐选择 Tiers sit side by side so differences are easy to scan.套餐并列呈现,差异一眼可比。

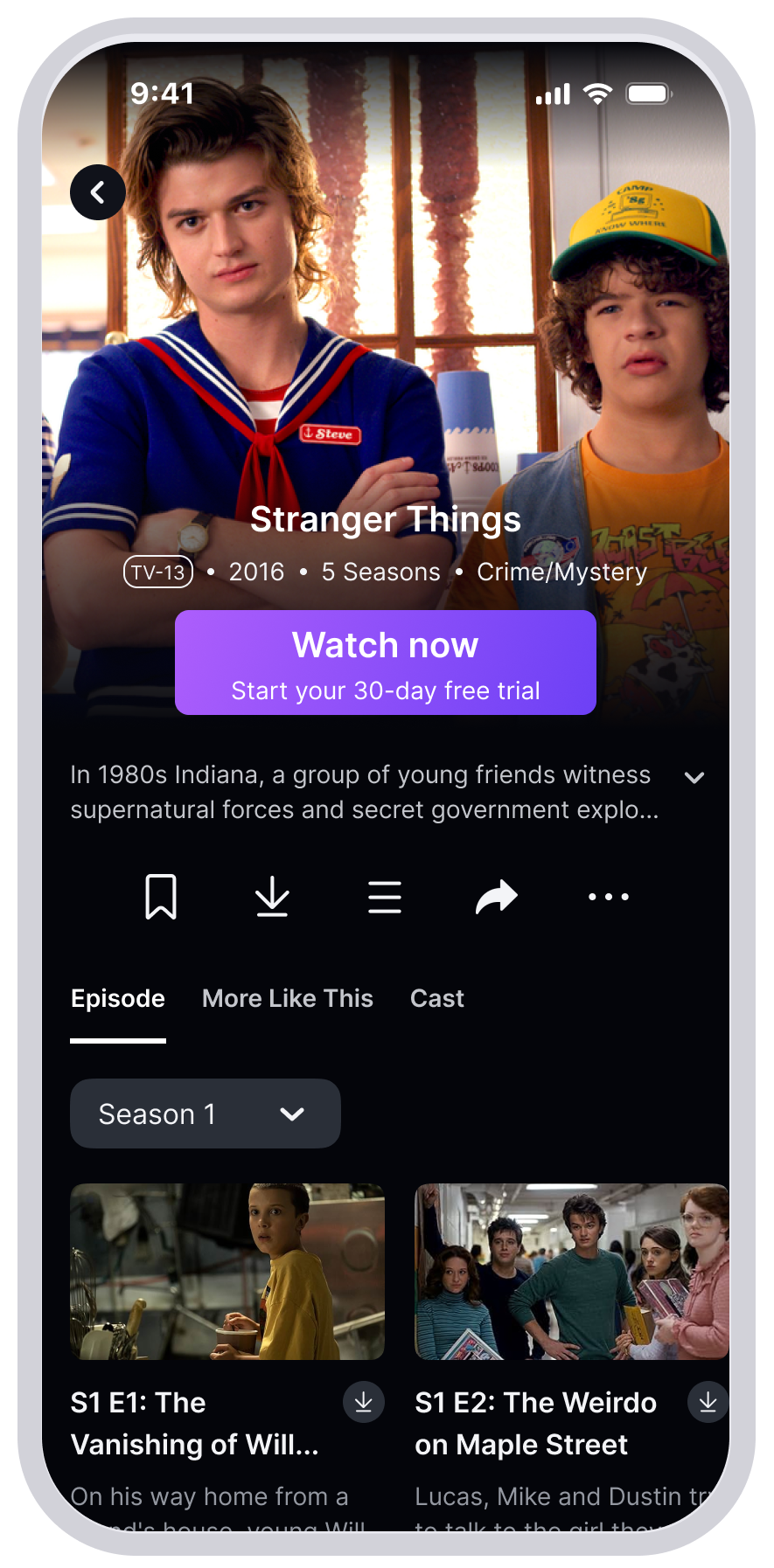

Title detail after subscribing
After subscribing订阅后 Once subscribed, access shows up in context.订阅完成后,权益直接显示在原有语境里。
07 — Decision · Payment off the shared screen07 — 决策 · 支付搬离大屏

Keep payment off the shared living-room screen.把支付从共享大屏挪走。

Problem问题

Entering a credit card on a shared living-room TV carries privacy risk and the friction of remote-control input — a bottleneck for payment conversion.在客厅共享大屏上输入信用卡,既有隐私风险,又受遥控器输入成本拖累,是支付转化的卡点。

Analysis分析

Entering payment on the TV versus handing off to the phone is a trade-off across conversion, privacy, the effort of entering details on the device, and launch feasibility.在 TV 端直接输入 vs 交接到手机,需要在转化、隐私、设备输入成本、上线可行性之间权衡。

Decision决策

Key information — title, plan, value — stays on the TV; payment and sensitive input move to the phone via a QR "continue on mobile"; closing the layer returns to the original detail page without losing context.关键信息(影片、套餐、价值)留在 TV;把支付与敏感输入通过二维码"在手机继续"完成;关闭弹层后仍回到原详情页,不丢失浏览上下文。

Result结果

Remote-control input friction dropped and living-room privacy was protected; paid viewing showed early positive signals after launch.降低了遥控器输入摩擦、保护了客厅隐私,付费观看在上线后显示早期正向。

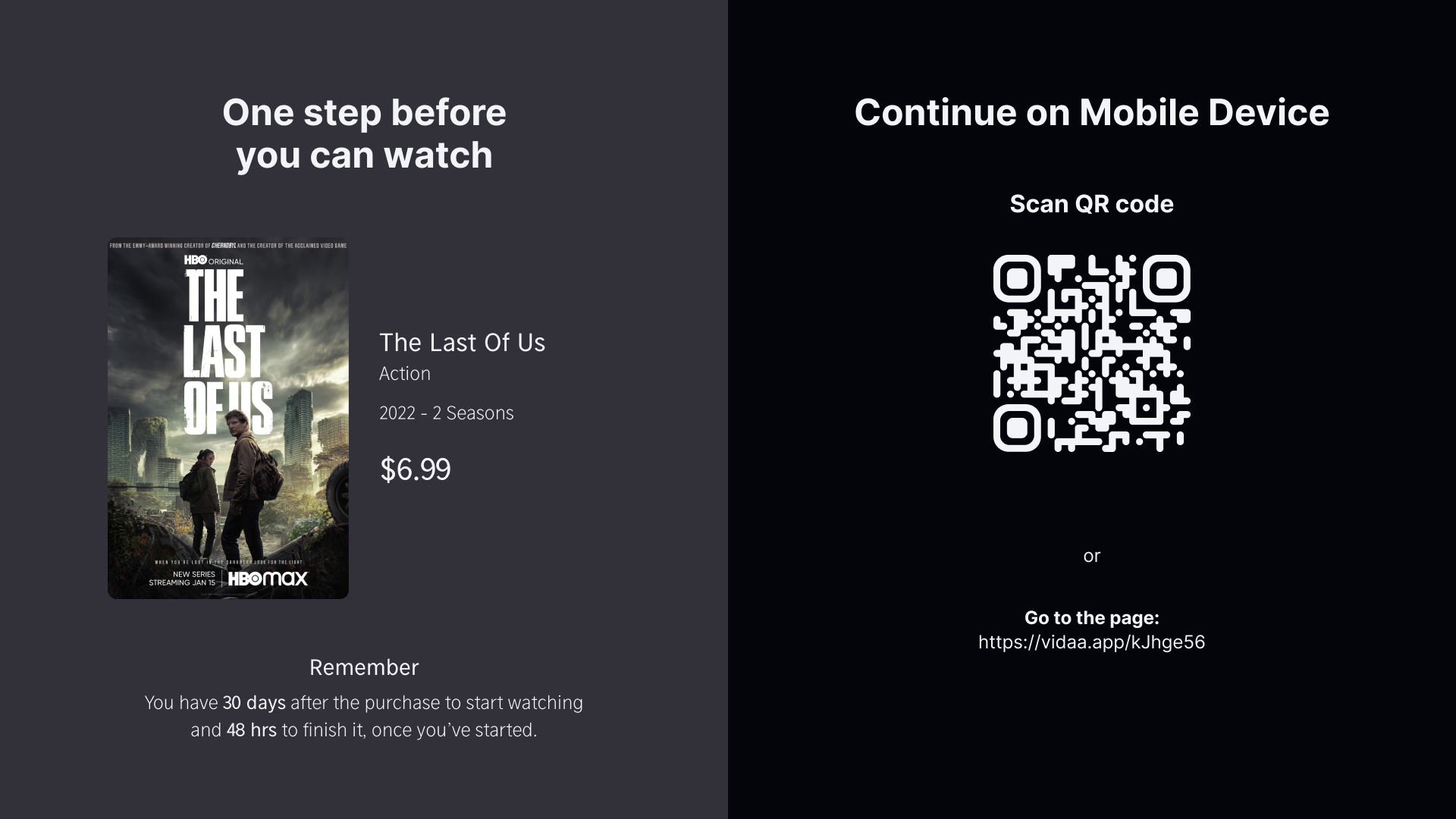

Payment handoff to mobile via QR
Payment handoff to mobile支付交接到手机
08 — One System08 — 一套系统

Different jobs, one design system.不同的任务,同一套设计系统。

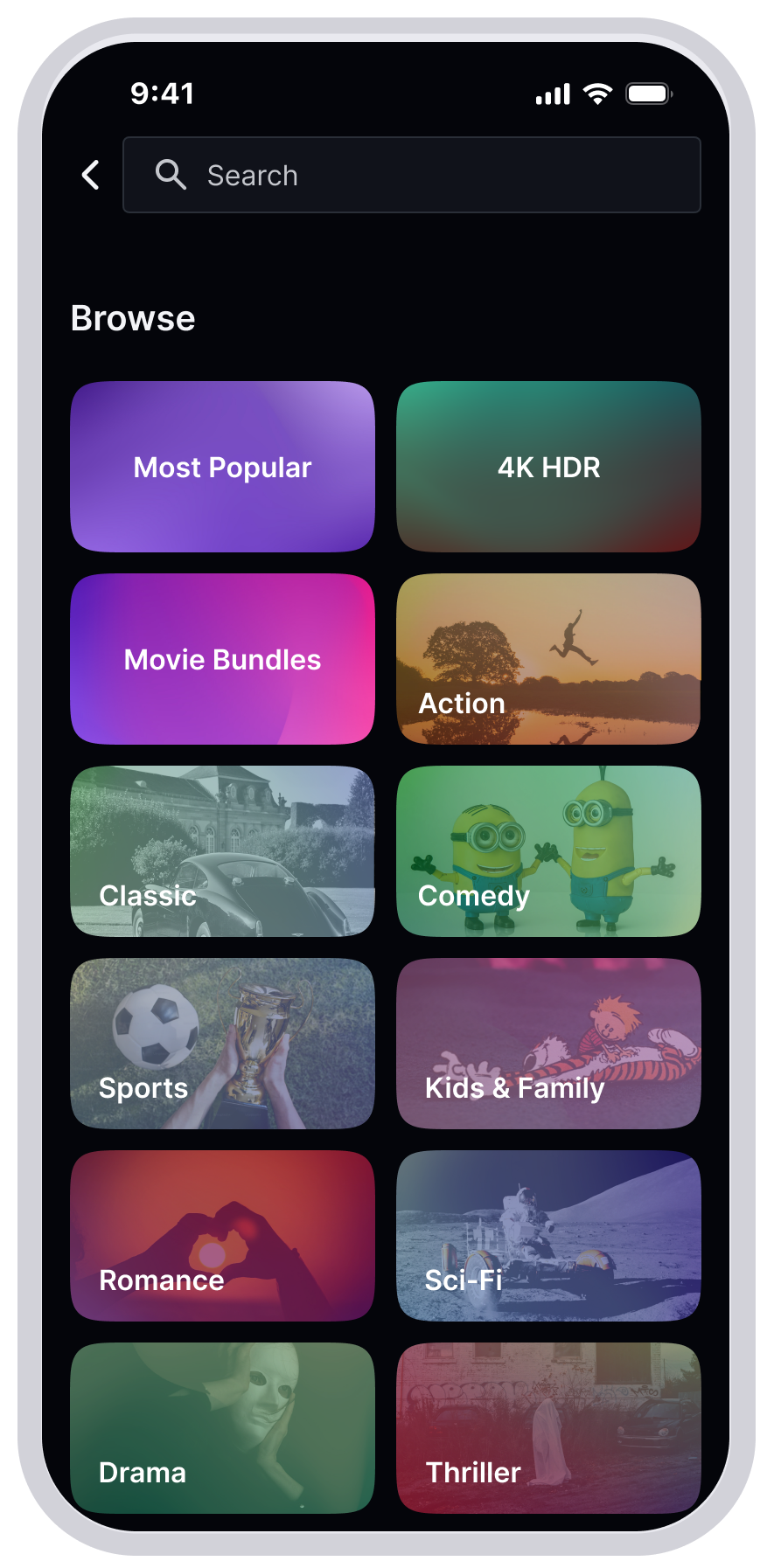

Discovery
Discovery发现 One entry model on every surface — browse, category, search.每个界面统一的入口模型:分类 / 专题 / 搜索。

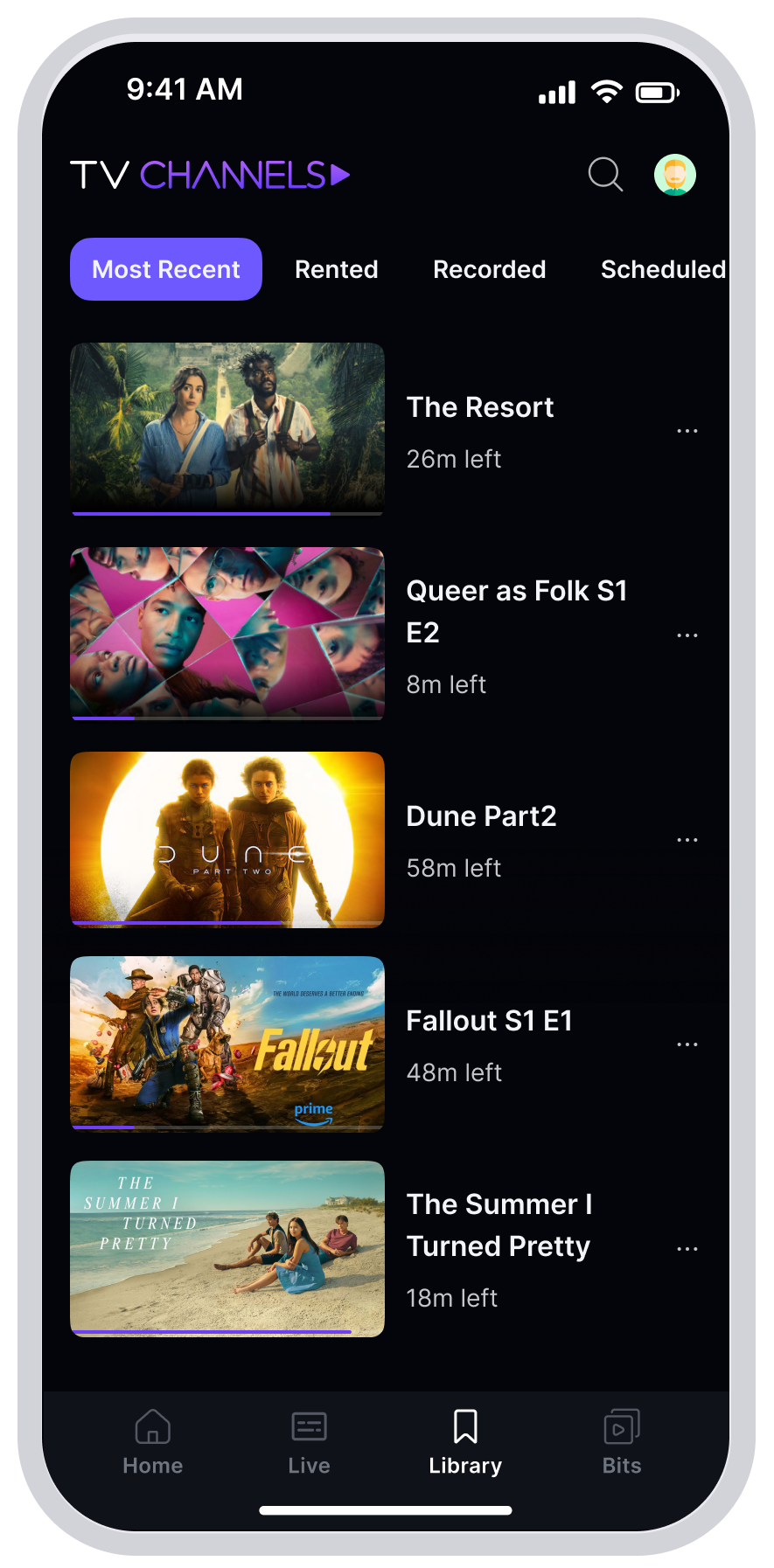

Library
Library片库 One entitlement model — watched, rented, recorded, saved.统一的权益模型:看过 / 租 / 录 / 收藏。

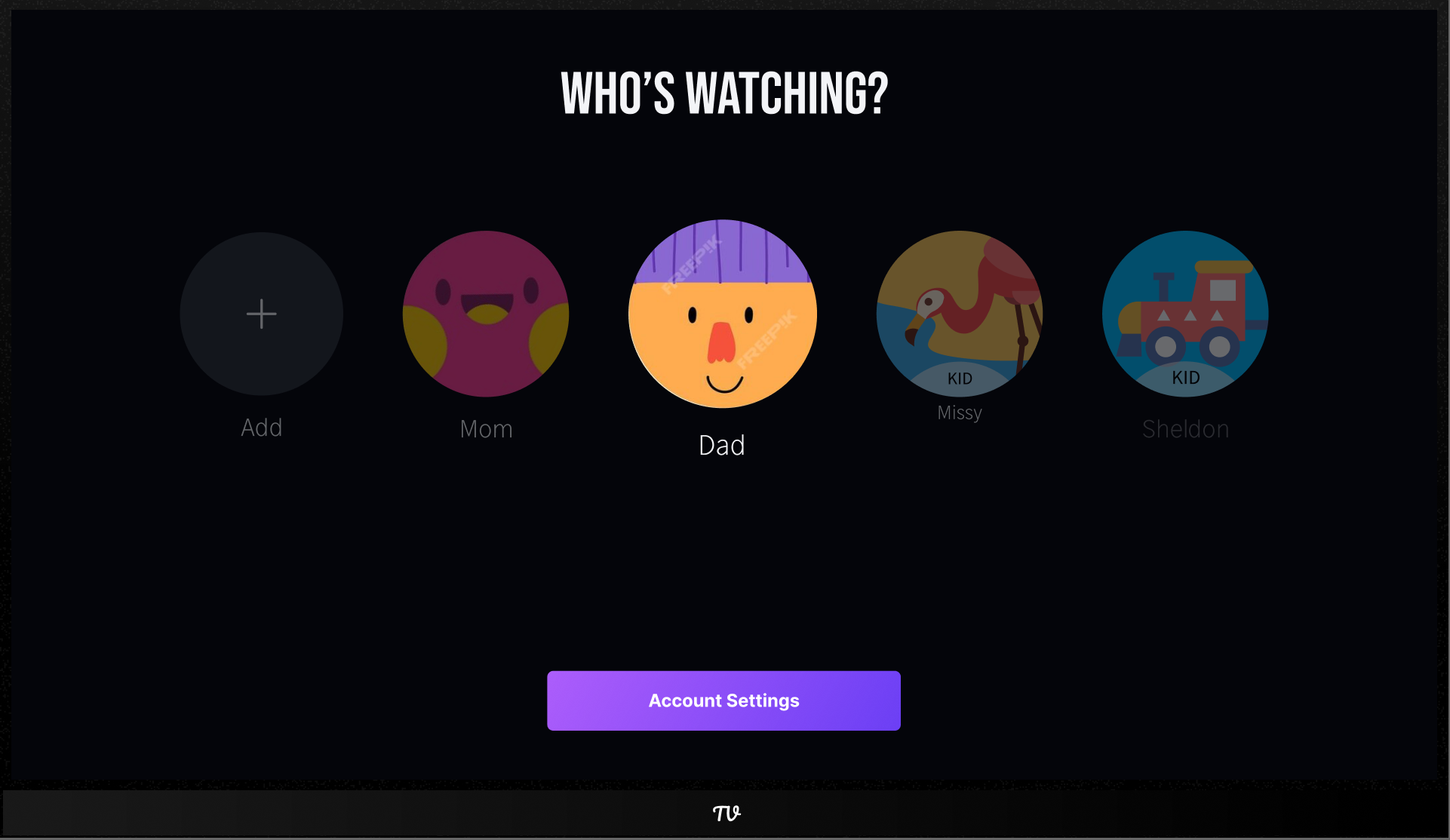

Household
Household家庭 One identity layer — profiles and parental controls. Profile boundaries are explicit before playback, trading one-tap play for reliable recommendations and kids' safety.统一的身份层:身份切换与家长控制。播放前先明确身份边界——放弃一键即播,换来推荐准确与儿童安全。
09 — Outcome09 — 结果

One cross-device loop, shipped.一条跨端闭环,已上线。

The project shipped one cross-device "watch + buy" loop across TV and mobile: live bridges into VOD, payment hands off to the phone, and progress and entitlement sync across both ends. After launch, VOD watch time trended upward and paid viewing showed early positive signals.这个项目交付了一条贯穿 TV 与手机的"观看 + 购买"闭环:直播承接点播、付费交接到手机、进度与权益跨端同步。上线后,点播观看时长呈上升趋势,付费观看显示早期正向信号。

To ship across multiple regions, I built the most feasible version of each flow first and deferred some ideal interactions — protecting a real launch over a perfect prototype.为了在多个区域真正上线,我先做出每条流程最可实现的版本、延后了部分理想交互——保住真实上线,而不是完美原型。

With production data, I'd validate this through live-to-VOD conversion, payment completion, cross-device continue-watching, and subscription retention.若有上线数据,我会用这些指标验证:直播→点播转化、付费完成率、跨端继续观看、订阅留存。
